Trimming Data

1min

Once a take has been selected and added to the Export List it is possible to define specific In and Out points for the data. By doing this it allows the user to easily align the tracking data with the specific camera footage that they are working with.

To manually define an In and Out point for the tracking data, simply adjust the handles displayed on the take timeline in the Export list. The reason for the buffer areas to the left and right of the In and Out points is that Wrangler automatically records with pre-roll function.

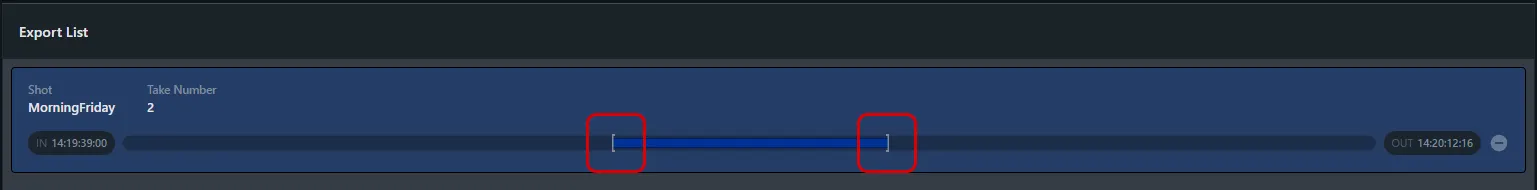

The blue area represents the section of the take that will be exported:

Document image


Alternatively, buttons are provided on the timecode values displayed at either end of the timeline. The buttons allow for making small adjustments that may be difficult using the handles on the timeline.

Example:

Document image
