CamBar Panel

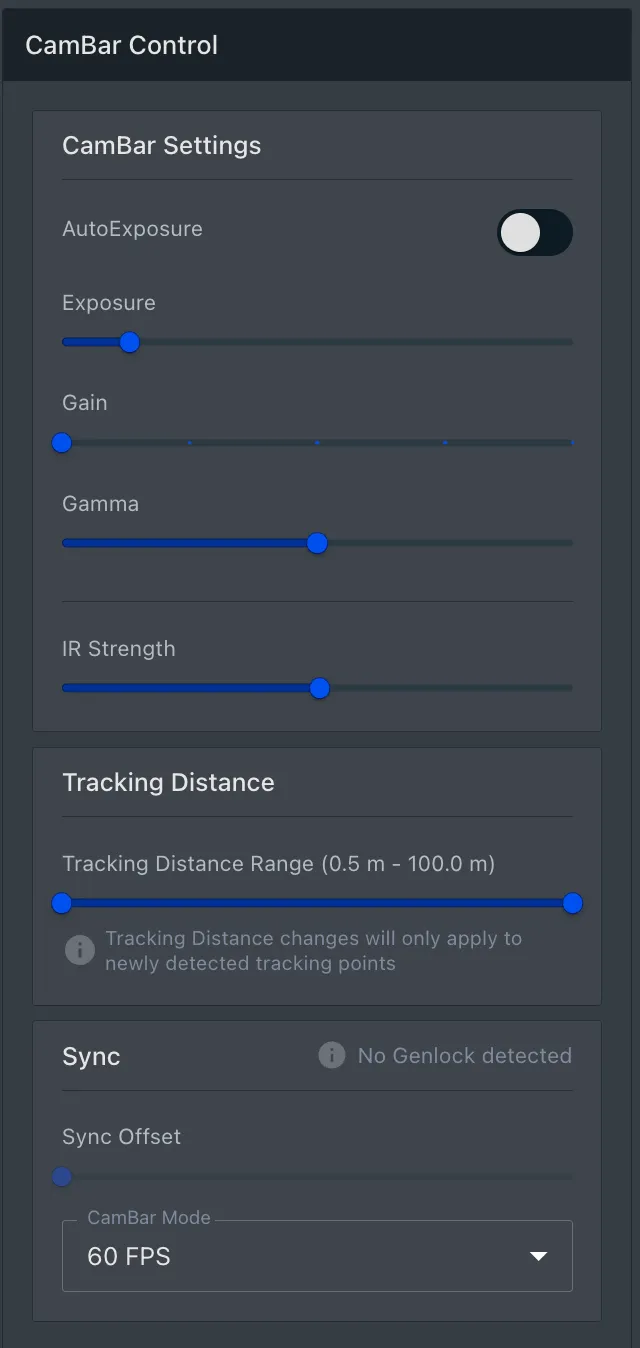

the cambar panel contains several settings for controlling the cambar and tracking, they are described below autoexposure the autoexposure toggle determines whether the exposure and gain settings are handled automatically or manually by the user when enabled, the system will manage the exposure and gain, and the respective sliders for these two parameters will be disabled when disabled, the user will be required to manage the exposure and gain values manually and ensure that suitable settings are found for typical usage it is recommended to enable auto exposure when operating the cambar in 50fps mode then autoexposure is not available exposure the exposure parameter allows the user to adjust the exposure of the cambar it is only available when autoexposure is disabled when adjusting exposure for dark environments, it is recommended to increase the gain before increasing the exposure as large exposure values can cause artifacts due to motion blur, which can be detrimental to tracking quality gain controls the gain of the cambar when working in dark environments it is recommended to increase the gain before increasing the exposure value gamma allows for the adjustment of the gamma curve of the cambar in some situations, it can help with marker visibility but is generally recommended to leave at the default value of “1” ir strength controls the strength of the ir led’s on the cambar when working in reflective marker mode it is vital that the ir strength is enabled if operating in a mode that does not require ir light then this can be safely left at 0 the maximum ir strength can slightly increase the power requirements of the link or origin tracking distance the tracking distance slider allows for the control of what features in the environment get learned for tracking whenever the system learns new tracking points (both marker or natural) then points that are not within the range defined here will not be learnt it is recommended to leave the default values of 0 5m and 100m as different values can make the tracking unstable and are only required for specific use cases sync the sync section displays whether the system is “genlocked” or not if genlock is connected then the related “sync offset” slider can be adjusted to finetune the synchronisation of the cambar the use of genlock is covered in more depth in the “using genlock” section cambar mode this parameter allows a user to choose the frame rate of the cambar in situations where genlock is not present it is recommended to use the default value of 60fps in all situations as this gives the most control over the cambar however, if “strobing” is seen in the cambar view switching to 50fps mode can be beneficial this is typically seen when working in environments that use 50hz lighting when changing cambar modes, the cambar will temporarily disconnect, this is expected behaviour and should take 5 10 seconds before re connecting
