Templates are pre-configured lens files that are provided free of charge with Scenario. They allow the simple use of selected 3rd party lenses with the Scenario system by letting a user start with a nearly complete lens file which can be finetuned to fit their specific instance of the lens.

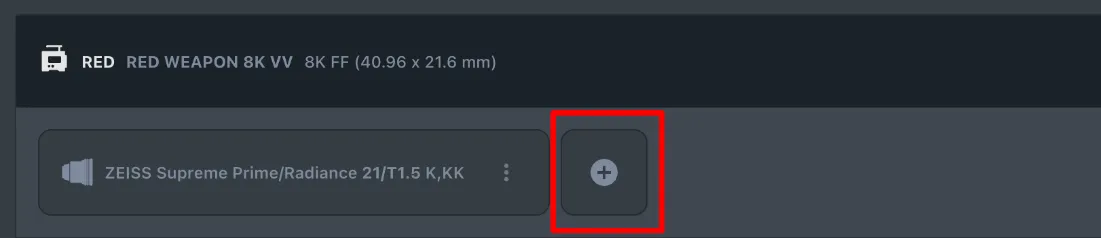

To add a template lens, simply select the “+” icon on the camera that you wish to attach it to.

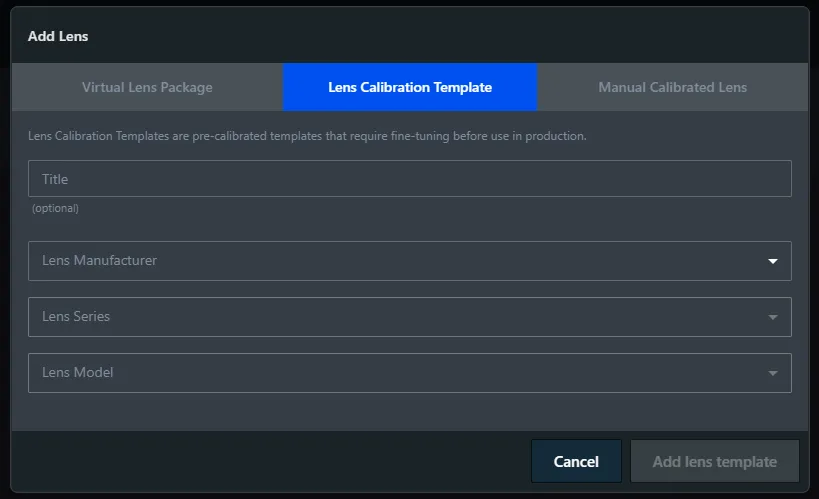

In the following window, select the “Lens Calibration Template” tab

Make a selection from the Manufacturer, Series and Model dropdown menus.

An optional “Title” can be given to the template, this is a way of identifying the lens when multiple individual versions of a template have been added.

After making the selection, press the “Add lens template” button to add the lens to the equipment page. The lens will be displayed with a yellow notification signifying that it should be “refined” before it should be used

Please refer to the Finetuning a lens section for details on the finetuning process
