Export And Reuse Lens Files
Any manually calibrated lens (or finetuned template lens) can be exported from Scenario allowing it to be used on other Scenario systems.
Exporting lens files also allows for the user to maintain an off-device backup of important lens calibration data.

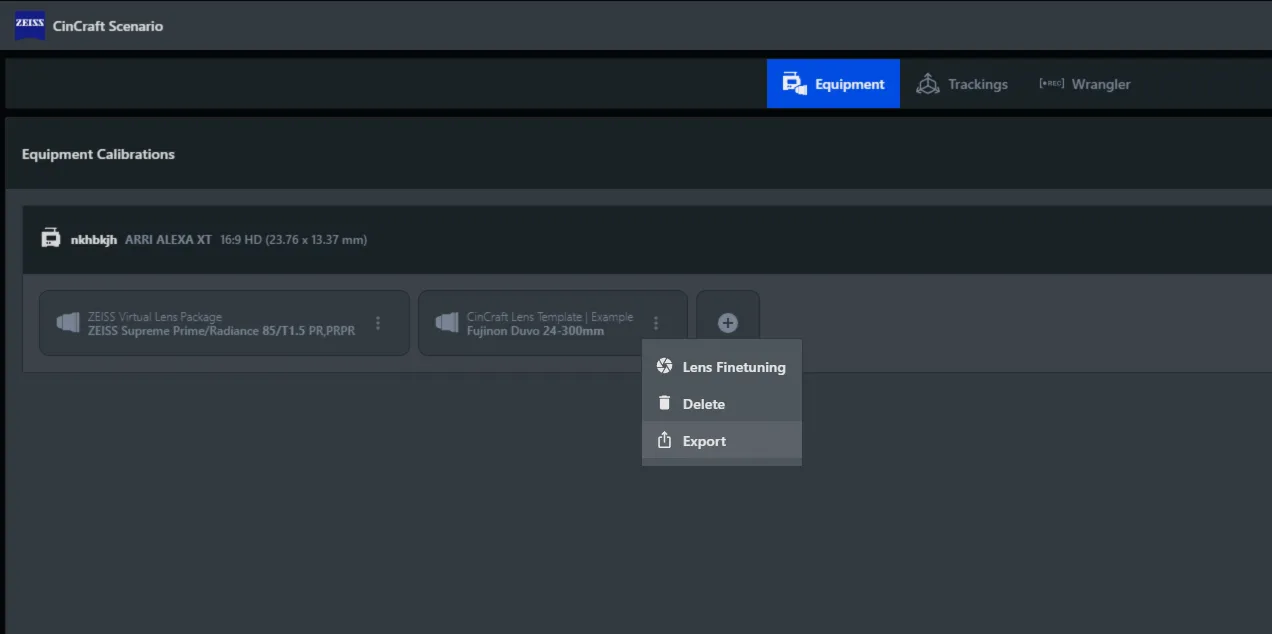

Lenses can be exported from the equipment manager page by selecting the menu icon on the relevant lens

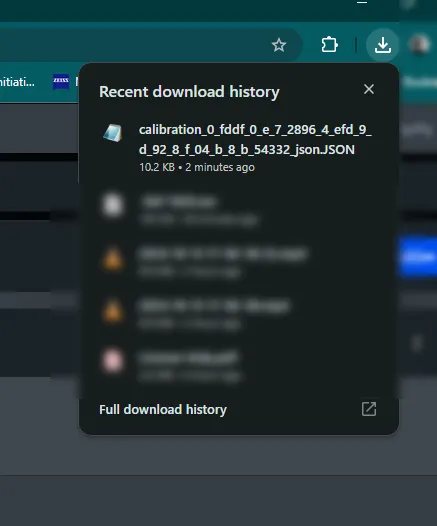

Lenses will be downloaded via the browser
To import a lens file into the system, select the “+” icon next to the camera you wish to import the lens onto, from the dialog box, select the “Manual Lens Calibration” tab and choose the “import file” option.
Importing only works when connected to the Origin from a remote device.
When importing a lens file onto a camera, if the sensor size of the camera that it is being added to is larger than the sensor size the lens was originally calibrated on, then issues with the quality of the calibration may become present. For this reason, we always recommend conducting the initial lens calibration on the largest sensor size camera mode that the lens is intended to be used with
