Seeing Lens Data In Scenario

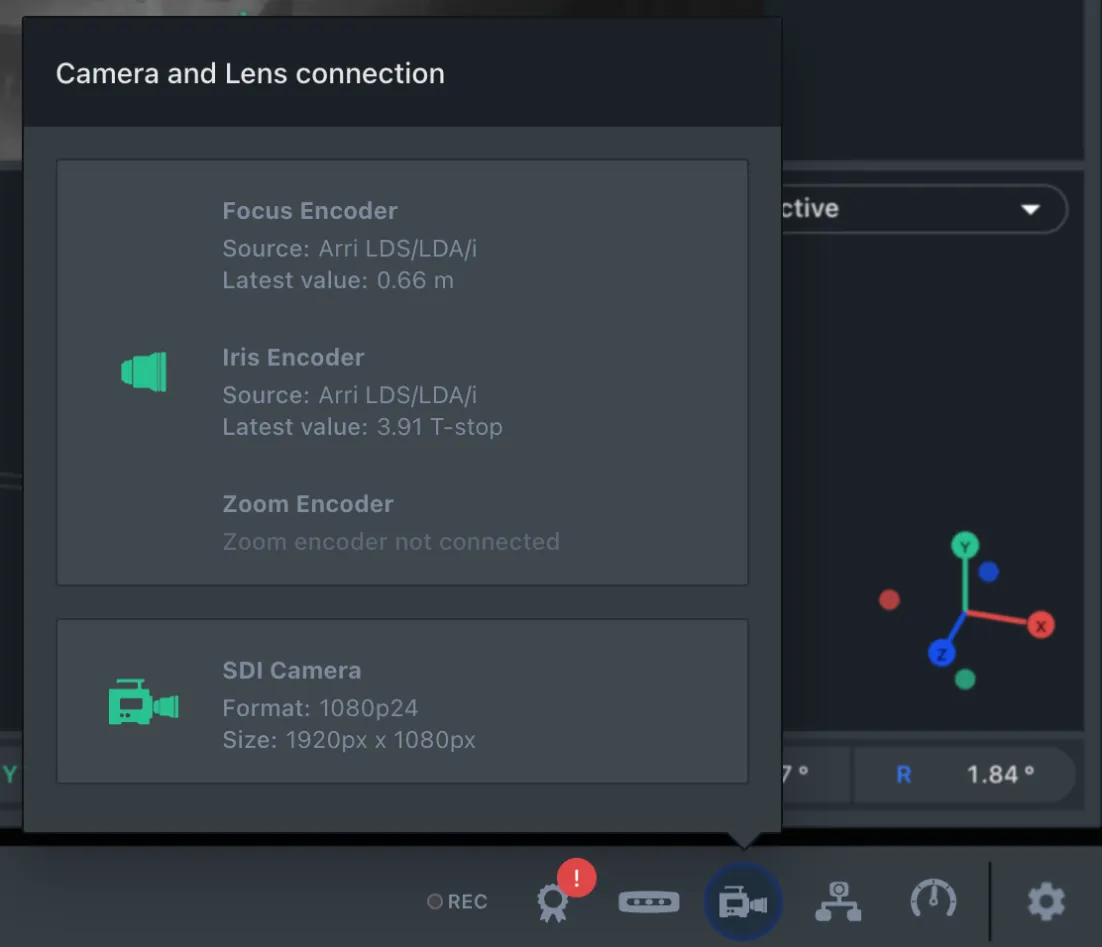

Lens data is displayed to the user on the system status bar

Document image


The dialog will display both the values and the source of the lens data. The status is updated every 5 seconds.

The lens information is also available in the dashboard, this is updated in real time

Document image


It is not possible to manually select the source of the data, for instance, if SDI metadata AND xd or /i data is available at the same time, the system will defer to the XD or /i data.

Prior to adding the first equipment to a project and starting a tracking config, the lens data will display a warning as it requires a lens to be initially added
